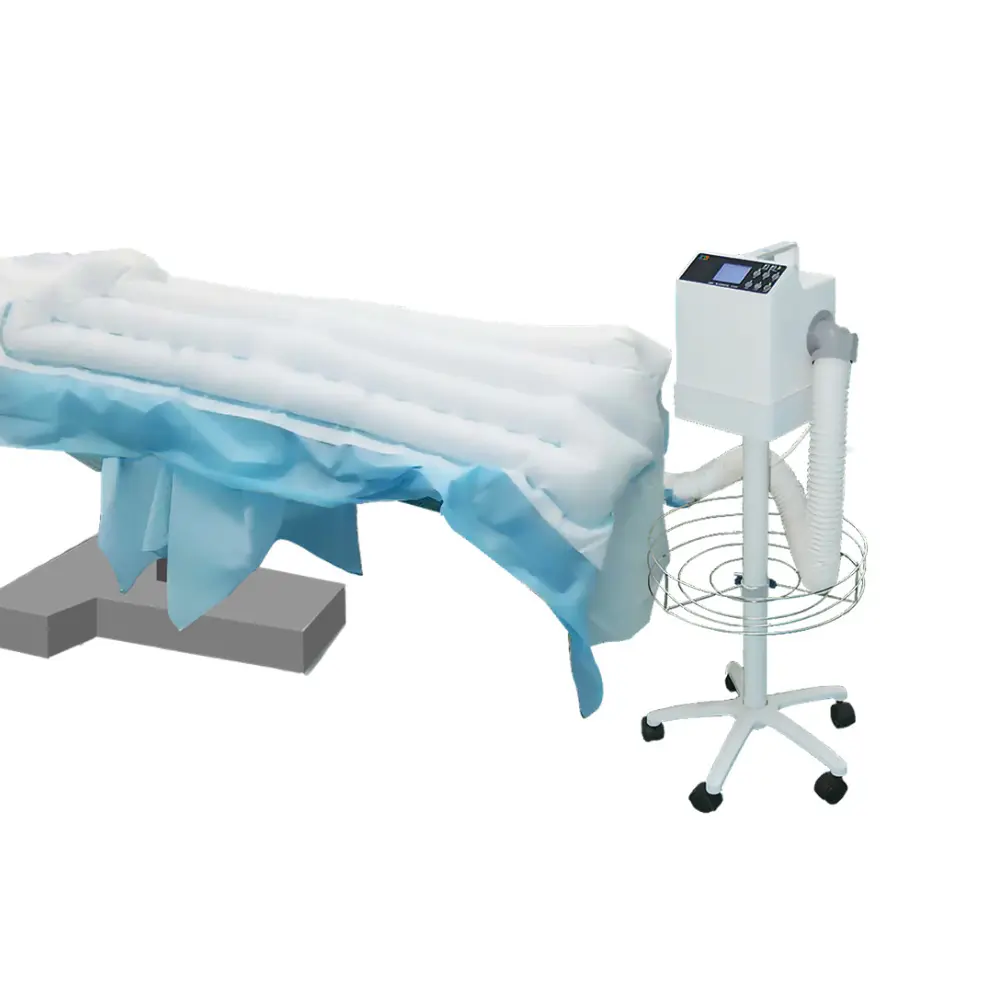

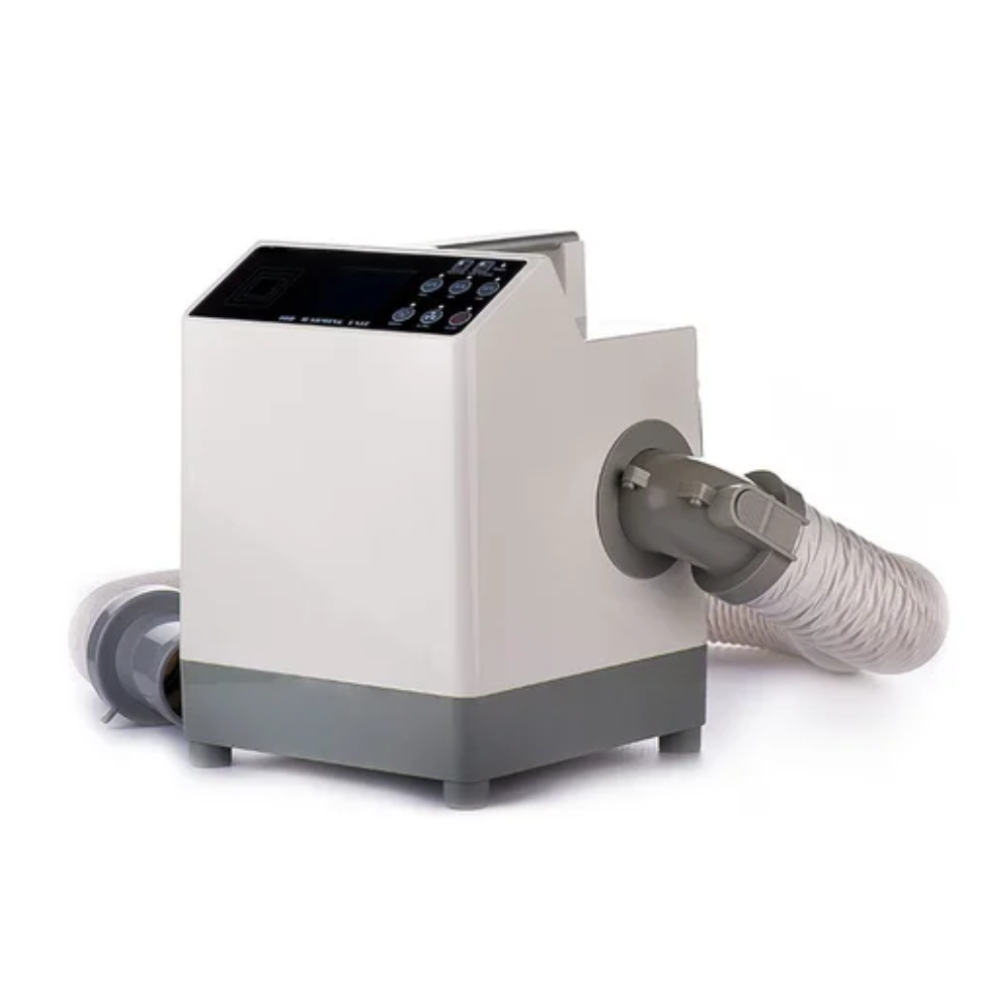

Revolutionary IOB Digital Patient Warming System by Infinium Medical

Description

The Digital IOB Patient Warmer is designed to keep patients warm during anesthesia and surgery. The durable and easy-to-use units are idea in clinical areas where patients are at risk of hypothermia.

Benefits

Flexible, easy-to-use design
Uniform perforations across the blanket surface ensure even convective warming
Soft, radiolucent, latex-free materials
Fully compatible with other brands of warming blankets
Blankets available in a wide choice of sizes and styles

What’s Included

IOB Warming Unit
Hose
Filter

Optional Accessories

Rolling stand
Wide variety of optional blankets

Advanced Features

DC Module
• EMC compliance
• High efficiency
• Over current protection,
short-circuit protection
• Self-recovery function

PTC Heating Units
• Significantly reduced risk of fire, long service life
• 3 groups of heating units running in parallel, triple guarantee
• Low risk of current leakage

Customized Blower
• DC power drive
• Heat-resistant ABS plastic shell
• Customised copper axis, for longer running life
• Lightweight
• PWM regulator with adjustable blower speed

Fuse System
• Dual stages fuses system
• Working & standby fuses
• Easyto replace without disassembling the unit

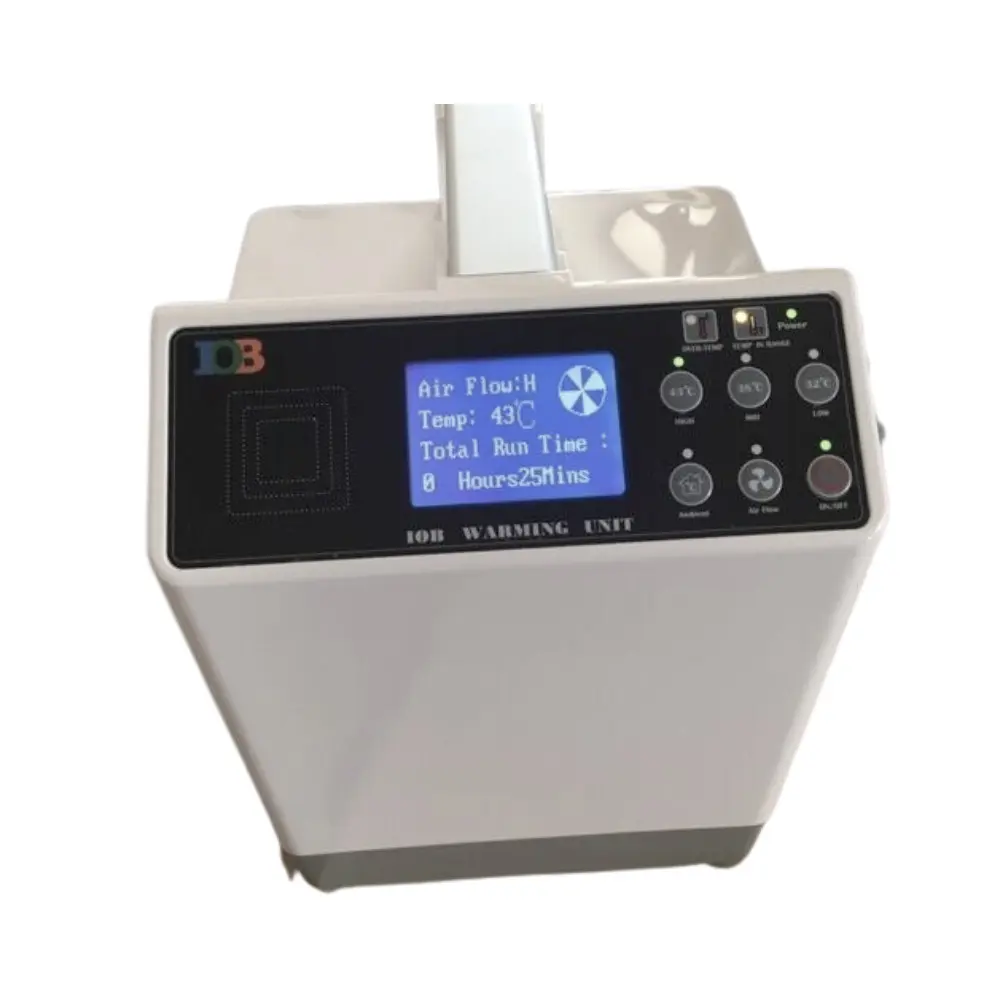

Display
• Large LCD screen + LEDIndicator
• Colour screen, good resolution
• More information on display

Adopt Low Air Flow
• Better warming performance
• Less influence to laminar in theatres

Double Layer Filter
• Initial filter + HEPAfilter
• Bigger filtration area

Fixation Design
• Bedside hook (stainless steel)
• Infusion rack hook (aluminium alloy)
• Air hose clamp (aluminium alloy)

Rolling Stand ( Optional )
• Two different heights
• Easyto install and use

Air Hose Cover
• Air hose cover available
• Easyto clean

Digital Sensorsin Hose
• More accurate
• No need for calibration by end user

Technical Specifications

Dimensions: H11in x D8.7in x W8.7in

Weight: 11.9 lbs

Operating Temperature

High: 109.4º ±5.4º
Mid: 100.4º ±5.4º
Low: 89.6º ±5.4º

Electrical Device Rating:

110-120 VAC, 60Hz, 10A
220-240 VAC, 50Hz, 8A

Filter: .2um High-efficiency filter, 500-1000 hours

Standards: IEC 60601-1, IEC 60601-1-2, IEC 60601-1-8, IEC 80601-2-35

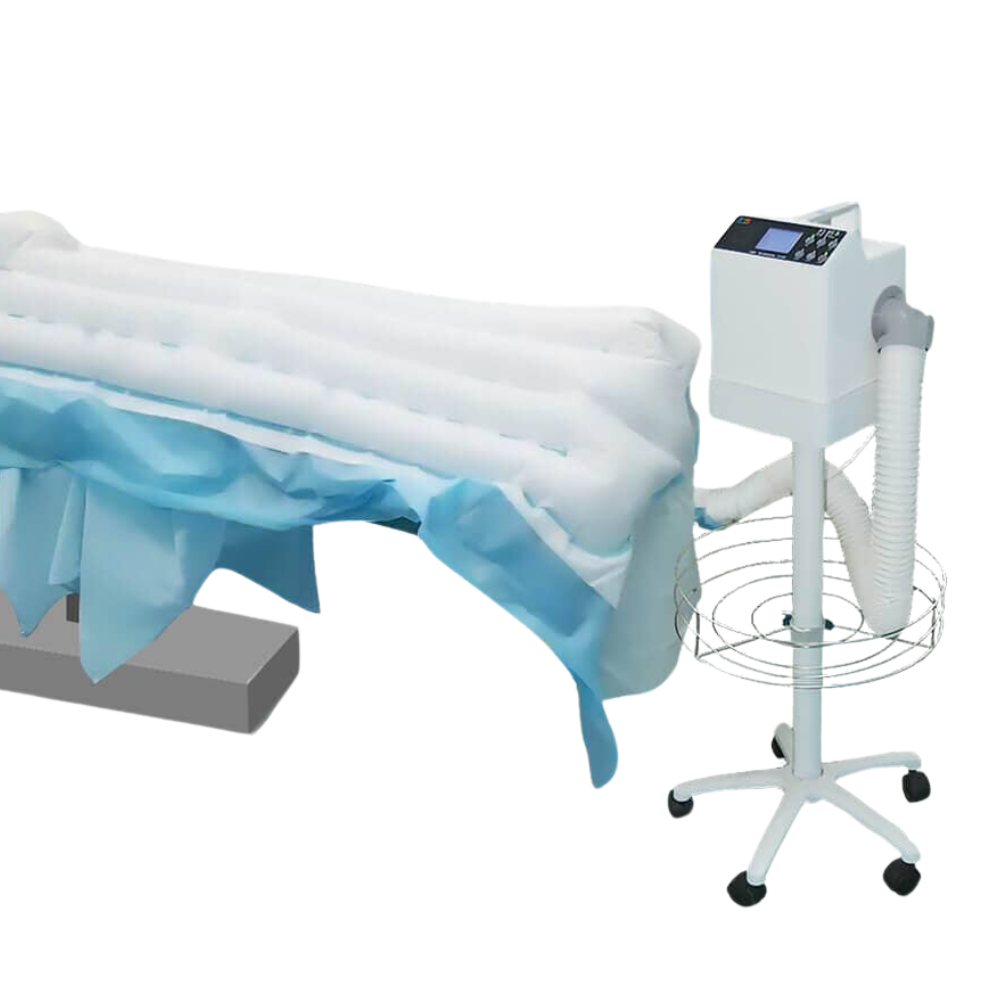

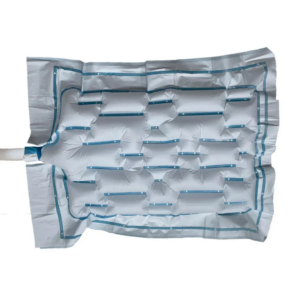

Compatible Blankets


	Pediatric Underbody Patient Warming Blanket-000.937.0005 Underbody forced air pediatric patient warming blanket - 36" H x 31" W - These blankets are crafted with premium materials for optimal comfort and efficacy, reflecting our commitment to delivering high-quality solutions for veterinarians in a variety of settings.
	Pediatric Full Body – Patient Warming Blanket-000.937.0006 Pediatric full body patient warming blanket - 67" H x 39" W - These blankets are crafted with premium materials for optimal comfort and efficacy, reflecting our commitment to delivering high-quality solutions for veterinarians in a variety of settings.
	Large Adult Full Body – Patient Warming Blanket-000.937.0007 Full Body forced air patient warming blanket - 83" H x 47" W - These blankets are crafted with premium materials for optimal comfort and efficacy, reflecting our commitment to delivering high-quality solutions for veterinarians in a variety of settings.
